11800081
Solis S6 29.9kW 3-Phase Hybrid 3 MPPT (High Voltage)
Our Policies
-
Shipped tomorrow - Ordered before 23:59, delivered the next business day
-
No handling charges - Above € 1,000, - no handling fee
Fast forward to:
Product Description

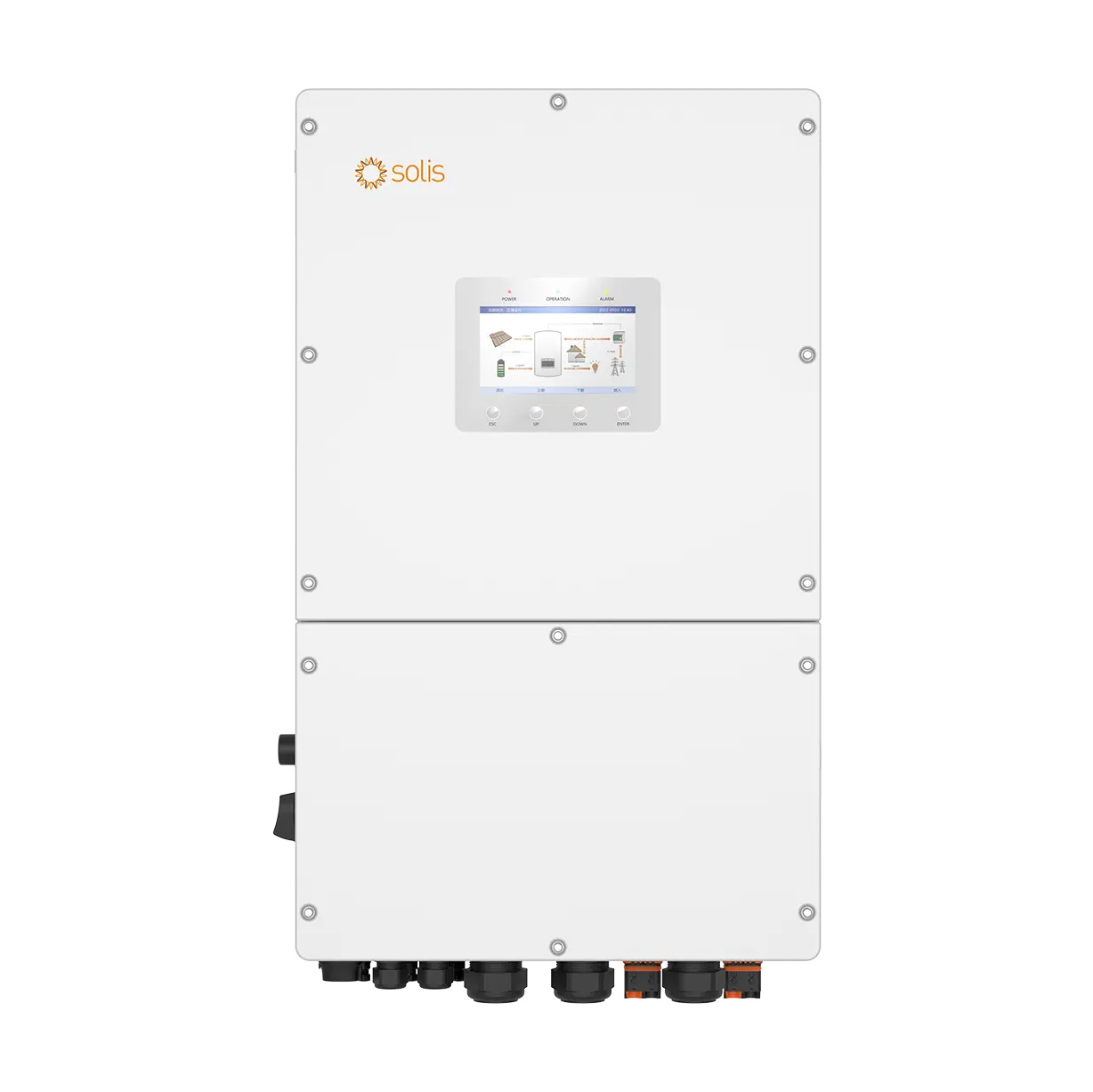

The Solis S6-EH3P29.9K-H is a 3-phase high-voltage inverter designed for applications where reliable energy storage and high performance are required. This powerful hybrid inverter is ideal for installers looking for flexibility, reliability and maximum energy utilization in commercial PV installations.
Features:
-
Powerful performance: 160% overload capacity for 2 seconds and up to 200% DC/AC ratio for optimal PV use.
-
Wide compatibility: Supports all high-power PV modules (up to 20A input power per string) and high-voltage Li-ion batteries (150-800V).
-
Smart power management: Real-time battery monitoring, automatic updates and battery healing function extend system life.
-
Flexible application: Works in both self-use and generator mode with peak shaving function for grid optimization and emergency power.
-
Rugged and efficient: IP66 enclosure, maximum efficiency of 97.8%, and backup switching time <10 ms.
Product specifications
Specifications
- MPN S6-EH3P29.9K-H
- Verpakkingseenheid 1
- Model S6 (High Voltage)
- Max. DC Input Power 59800 W
- Max. DC Input Voltage 1000 V
- Max. Input Current per MPPT 40.00 A
- Max. AC Active Power 29900 W
- Nominal AC Grid Frequency 50 Hz
- European Efficiency 97.40
- Cooling Fan cooling
- Ingress Protection Rating IP66
- Topology Transformerless
- Numbers strings MPPT 6
- Battery ready Yes
- Max Short-circuit current 60.00 A
